Programmable Thermostat For Commercial HVAC Systems

  • 1
  • 2

Model Number : KF-700B-WK

Application : Central air conditioning system / duct system

Payment Terms : T/T

Shell color : Pearl White

Load Type : Fan coil unit / motorized valve / water valve

Price : US$20/pcs

Control Mode : Heating / Cooling / Ventilation

Supply Ability : 100000pcs

Built in sensor : Temperature

MOQ : 1

Delivery Time : 2-3 weeks

Place of Origin : China

Product name : KF-700B-WK Thermostat

Certification : CE, RoHS

Brand Name : OEM or neutral (no brand)

Contact Now

Product Overview:

KF-700B-WK Smart Fan Coil Thermostat is designed for precise temperature control in central air conditioning systems, fan coil units, and air duct applications.


It automatically compares indoor temperature with the set value and controls fan coil units, motorized valves, or water valves to maintain a stable and comfortable indoor environment, achieving the goal of regulating indoor temperature, comfort, and energy conservation.



Key Features:


Display: LCD backlight screen
Sensor: Built-in temperature sensor
Installation: Wall-mounted
Load Type: Fan coil unit / motorized valve / water valve
Functions: Temperature control, timing, child lock, mode switching
Voltage Range: Wide voltage compatible (HVAC systems)



Specifications:
* Dimension: 86×86×40mm
* Storage temperature: -10℃ --- +60℃
* Fixing hole distance: 60mm(standard)
* Storage humidity: ≤60％RH
* Standby Power: ≤3.0W
* Temperature display range: 0℃ -- +50℃
* Rated voltage: 100—240VAC 50/60Hz
* Operating temperature: 0℃ -- +50℃
* Life : ≥ 5 years
* Wiring terminal: Max 2.5 mm² wire
* Operating humidity: 5%RH——90%RH (Non-condensing)

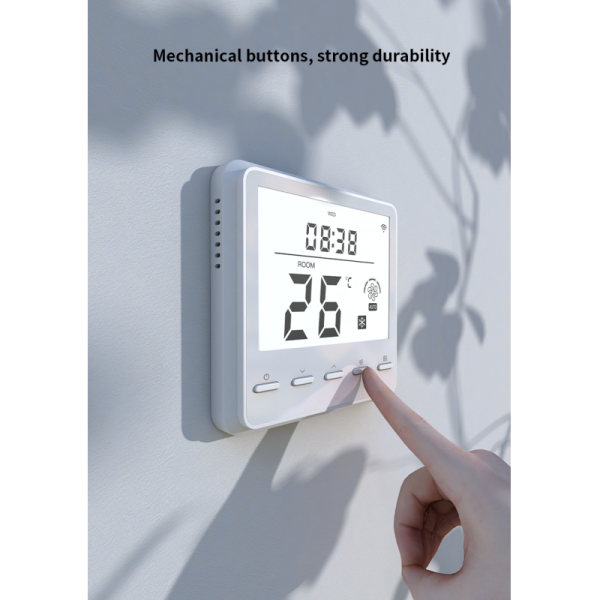

Product Images:

Programmable Thermostat For Commercial HVAC Systems

Programmable Thermostat For Commercial HVAC Systems

Programmable Thermostat For Commercial HVAC Systems




Wiring Diagram:
Programmable Thermostat For Commercial HVAC Systems
