Product Overview:
KF-900A-S intelligent controller is capable of real-time monitoring of indoor temperature and humidity, PM2.5, CO2 (optional), WIFI (optional). Connecting to WIFI can display the temperature and humidity values of the local meteorological station, with RS485 control.
AC output signal directly controls the start and speed of the fresh air fan. It can be widely used in residential, commercial and industrial applications, and can effectively improve air quality, create a healthy, comfortable, energy-efficient living and working environment.
Key Features:
Smart Air Quality Control
Automatically adjusts fan speed according to real-time CO₂, PM2.5, and VOC levels to maintain healthy indoor air quality.
4.3-Inch Touchscreen
LCD color display provides clear visualization of system status, sensor data, and operating modes.
Remote App Control
Control and monitor the ventilation system anytime through Smart Life or Tuya Smart App.
RS485 Integration
Supports integration with BMS, HVAC, and smart building management systems.
Product Specifications:
| * Dimension: |
88 × 88 × 50 mm |
|
* Warm-up time: |
1 minute |
| * Fixing hole distance: |
60mm (standard) |
|
* Response time: |
≤ 10 seconds |
| * Wiring terminal: |
Max 2.5 mm2 wire |
|
* Recovery time: |
≤ 30 seconds |
| * Rated voltage: |
AC110-240V, 50/60Hz |
|
* Operating temperature: |
-10℃--- +50℃ |
| * Standby Power: |
≤ 3.0W |
|
* Operating humidity: |
5％RH——90％RH |
| * Control power: |
≤ 200W |
|
* Storage temperature: |
-10℃--- +60℃ |
| * Suitable for fans: |
AC/EC/DC |
|
* PM2.5 display range: |
0ug/m3——999ug/M3 |
| * Temperature display range: |
0℃ —— 99℃ |
|
* C02 display range: |
0ppm——9999ppm |
| * Humidity display range: |
0%—99% |
|
|
|

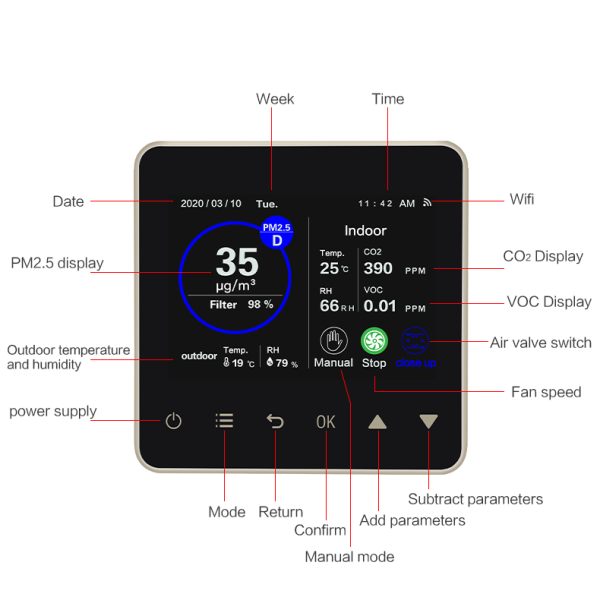

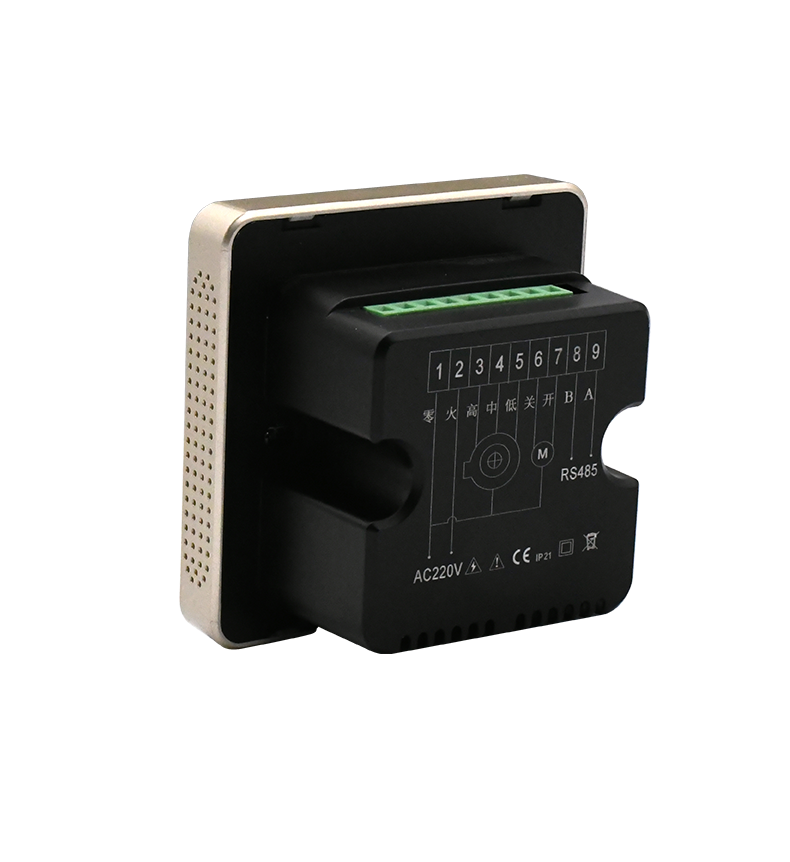

Product Images:
