4 Inch Touch Screen WiFi Connectivity ModBus RTU Interface Heat Recovery Ventilation HRV Ventilation Controller

  • 1
  • 2
  • 3

Model Number : G6-T

Standby Power : ≤ 2.0W

MOQ : 1

Delivery Time : 2-3 weeks

Application : Residential, Commercial, Office Buildings, Hotels, Schools

Payment Terms : T/T

Price : $65

Wireless Control : Wi-Fi Remote Access

Supply Ability : 100000pcs

Certification : CE, RoHS

Control power : ≤ 200W

Brand Name : OEM or neutral (no brand)

Product Name : Smart Fresh Air Ventilation Controller

Place of Origin : Guangdong, China

OEM/ODM Service : Available

Contact Now

Product overview:

The Smart Fresh Air Ventilation Controller G6-T is a powerful and user-friendly solution designed for modern fresh air, HRV, and ERV ventilation systems. Featuring a 4-inch full-color touchscreen display, it provides real-time monitoring of indoor air quality and intelligent ventilation management for residential and commercial applications.

The G6-T fresh air system intelligent controller can monitor indoor temperature, humidity, PM2.5, CO2, and VOC levels in real time; it supports Wi-Fi connectivity; and features a ModBus RTU (RS485) interface, allowing users to connect to smart home and other backend monitoring systems.

Key Features:

  • Standard 86-type wall-mounted design for easy installation and seamless integration into modern interiors.
  • Wi-Fi remote control via Smart Life App and Tuya App, with RS485 communication support for building automation and system integration.
  • OEM & ODM customization available, including UI interface design, logo branding, and housing color customization to meet specific project requirements.

Technical Specifications:

* Dimension: 86 * 86 * 40 mm * Warm-up time: 2 minutes
* Fixing hole distance: 60mm (standard) * Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire * Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz * Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 2.0W * Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W * Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC * Storage humidity: ≤ 60％RH
* Temperature display range: 0℃ —— 99℃ * Life: ≥ 3 years
* CO2 display range: 350ppm——2000ppm * PM2.5 display range: 1ug/m3——999ug/m3


Products images:

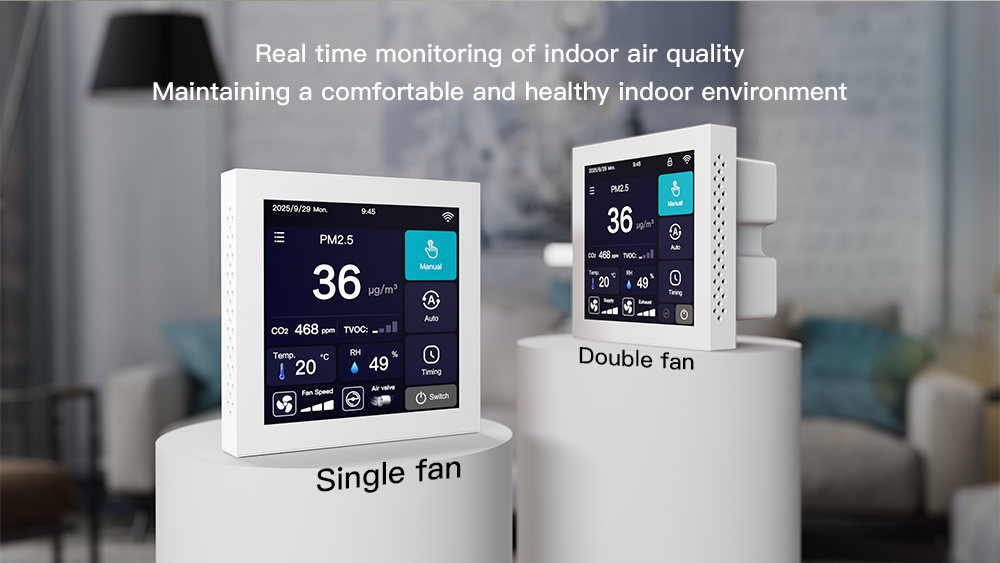

4 Inch Touch Screen WiFi Connectivity ModBus RTU Interface Heat Recovery Ventilation HRV Ventilation Controller

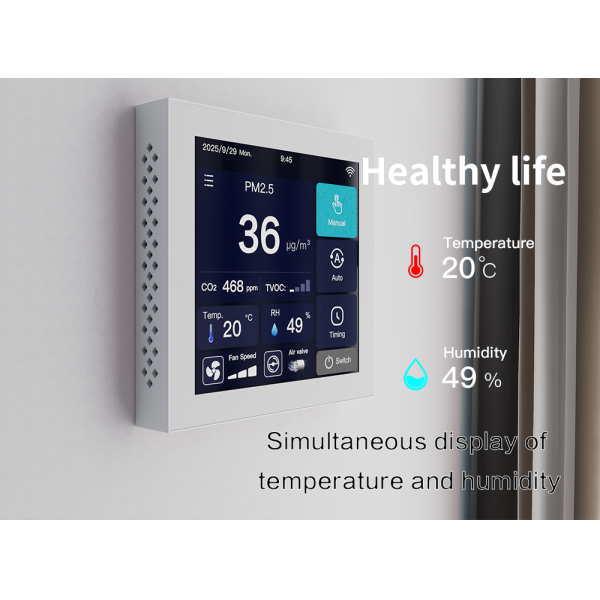

4 Inch Touch Screen WiFi Connectivity ModBus RTU Interface Heat Recovery Ventilation HRV Ventilation Controller

4 Inch Touch Screen WiFi Connectivity ModBus RTU Interface Heat Recovery Ventilation HRV Ventilation Controller


4 Inch Touch Screen WiFi Connectivity ModBus RTU Interface Heat Recovery Ventilation HRV Ventilation Controller
